Home IP Cameras DWC-MB45iALPRTW

DWC-MB45iALPRTW

MEGApix 5MP LPR bullet IP camera with long range vari-focal lens and IR
Find a Reseller Request a Demo Contact Us FAQs
Features
  • 5MP 1/2.8" image sensor at real-time 30fps
  • License plate recognition technology captures reflective license plates up to 50mph with up to 60’ capture range
  • Reliable performance under any lighting conditions
  • 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • Cold start -40°F (-40°C)
  • 80' Smart IR™ with intelligent camera sync
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Two-way audio
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Alarm sensor input
  • Relay output
  • Web server built-in
  • PoE class 3 and DC12V
    • Show More

Learn about how DW
solutions can work for you

View All Markets

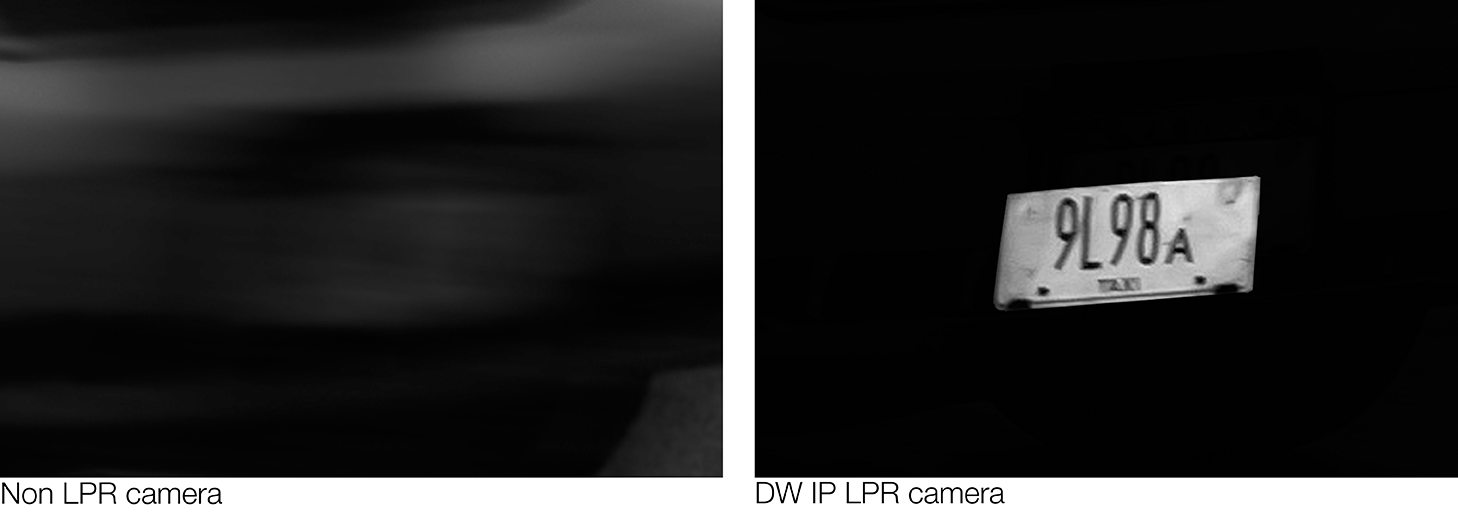

License Plate Recognition (LPR) Camera

Capture license plates in moving vehicles at up to 50mph in extremely low light visibility.

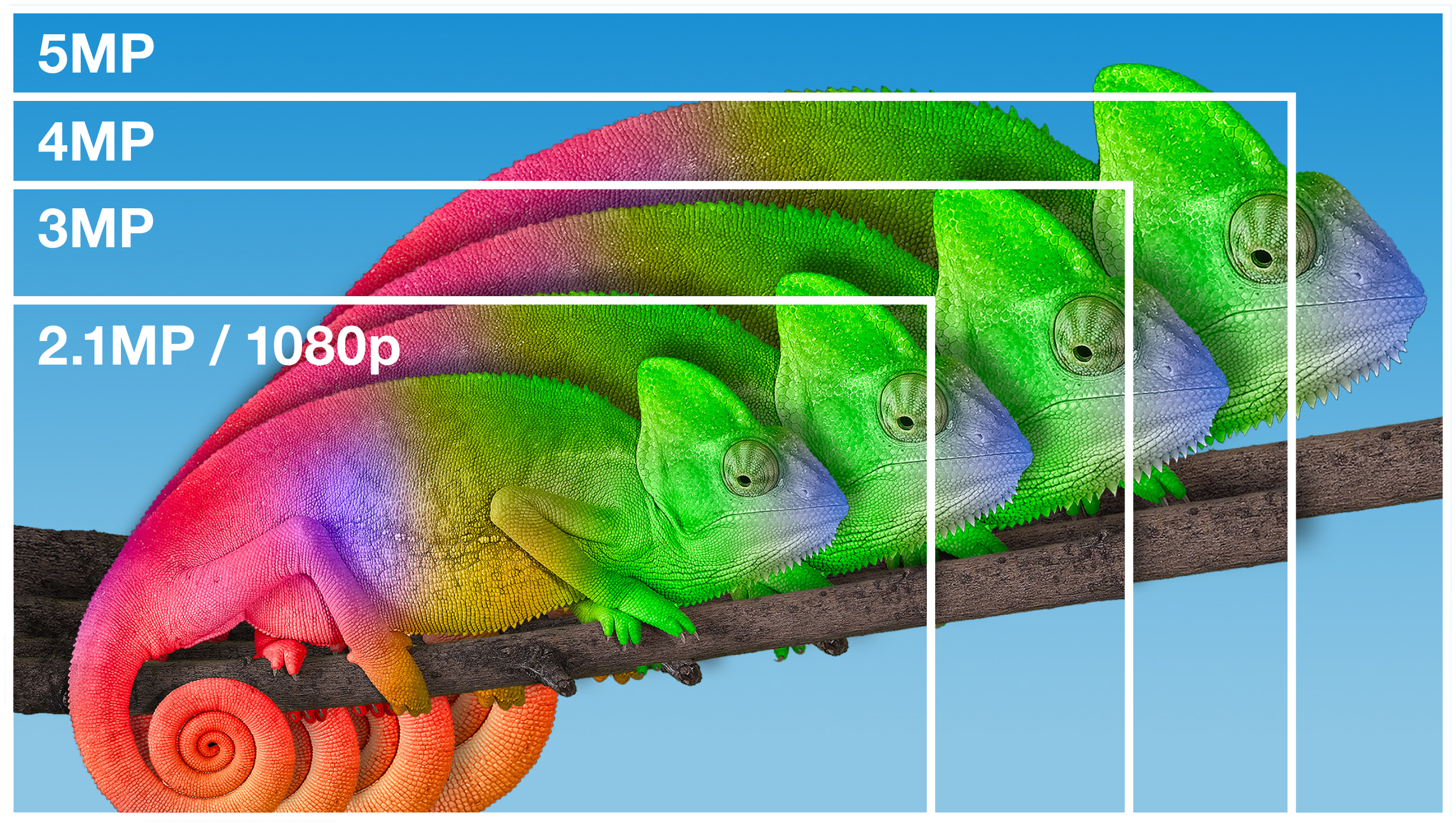

Megapixel resolution

DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.

Cold Start -40°F (-40°C)

The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.

Specifications

Image sensor 5MP 1/2.8" CMOS sensor
Maximum resolution 5MP
Minimum Scene Illumination in color 0.0 lux (B/W)
Lens
Advanced Lens Features Auto focus, Motorized zoom, P-iris
Focal Length 6mm ~ 50mm
Horizontal Field of View (HFOV) 40.8° ~ 6.9°
IR Distance 80' range Smart IR™
Lens Type Vari-focal Lens
Operational
Auto gain control Auto
Day and night Night (B/W)
LPR Capture Range Up to 60’ and 50 MPH
Mirror/flip Yes
Motion Detection Yes
Sharpness Yes
White Balance Yes
Network
Network Web Viewer Google Chrome® browser, Linux® OS, Mac® OS, Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser, Windows® OS
Protocol DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Security 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering
Video Compression Type H.264, H.265, MJPEG
Video Management Software Any ONVIF conformant CMS, DW Spectrum® IPVMS, ExacqVision Technologies, Genetect Inc., Milestone Systems
Environmental
Compliance CE  FCC  NDAA Compliance  ONVIF  UL Listing
Environmental Operating Temperature -40°F ~ 122°F (-40°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) *Dimensions based on the position of the sun shield cover
Housing Bullet, LPR
Housing Color White
IP rating Weather Resistant (IP66)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) Cable type #18
Power Requirements Adapter not included, PoE
General
Warranty 5 Year Warranty

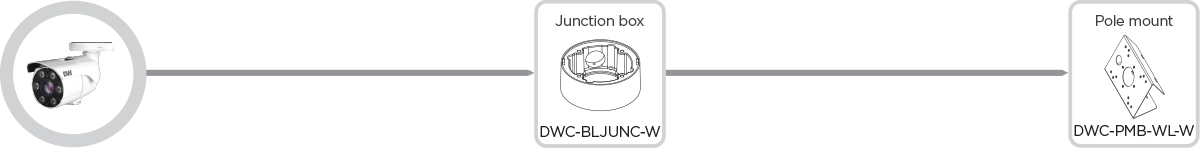

Accessories

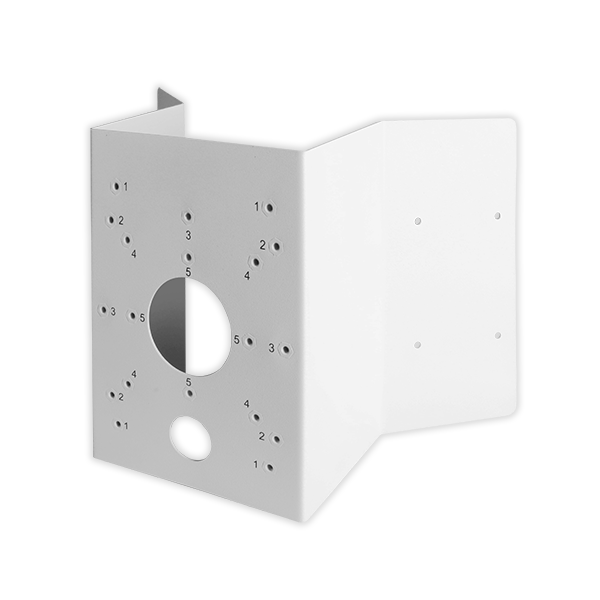

DWC-V1CNMW
Corner and pole mount bracket - White
Learn more
DWC-BLJUNC-W
Junction box for white bullet cameras - white
Learn more

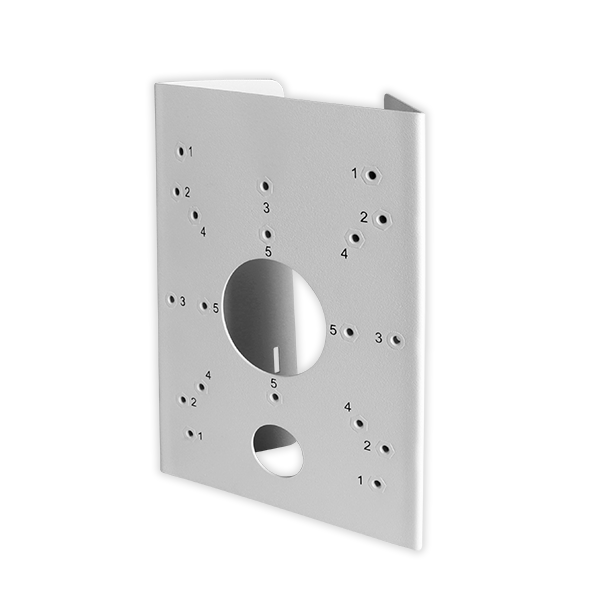

DWC-PMB-WLW
Pole mount bracket - white
Learn more

Documents

Title Type
DWC-MB45iALPRTW datasheet - French
pdf Download
DWC-MB45iALPRTW datasheet - Spanish
pdf Download
DWC-MB45iALPRTW datasheet
pdf Download
DWC-MB45iALPRTW quick setup guide
pdf Download
Camera part numbering system
pdf Download
DWC-MB45iALPRT user manual
pdf Download
DW Accessories Chart
pdf Download
MEGApix Single-Sensor Brochure
pdf Download
DWC-MB45iALPRT_W AE specifications
doc Download
DWC-MB45iALPRT datasheet
pdf Download
DWC-MB45iALPRT quick setup guide
pdf Download
DWC-MB45iALPRT_W CAD drawing
dwg Download
